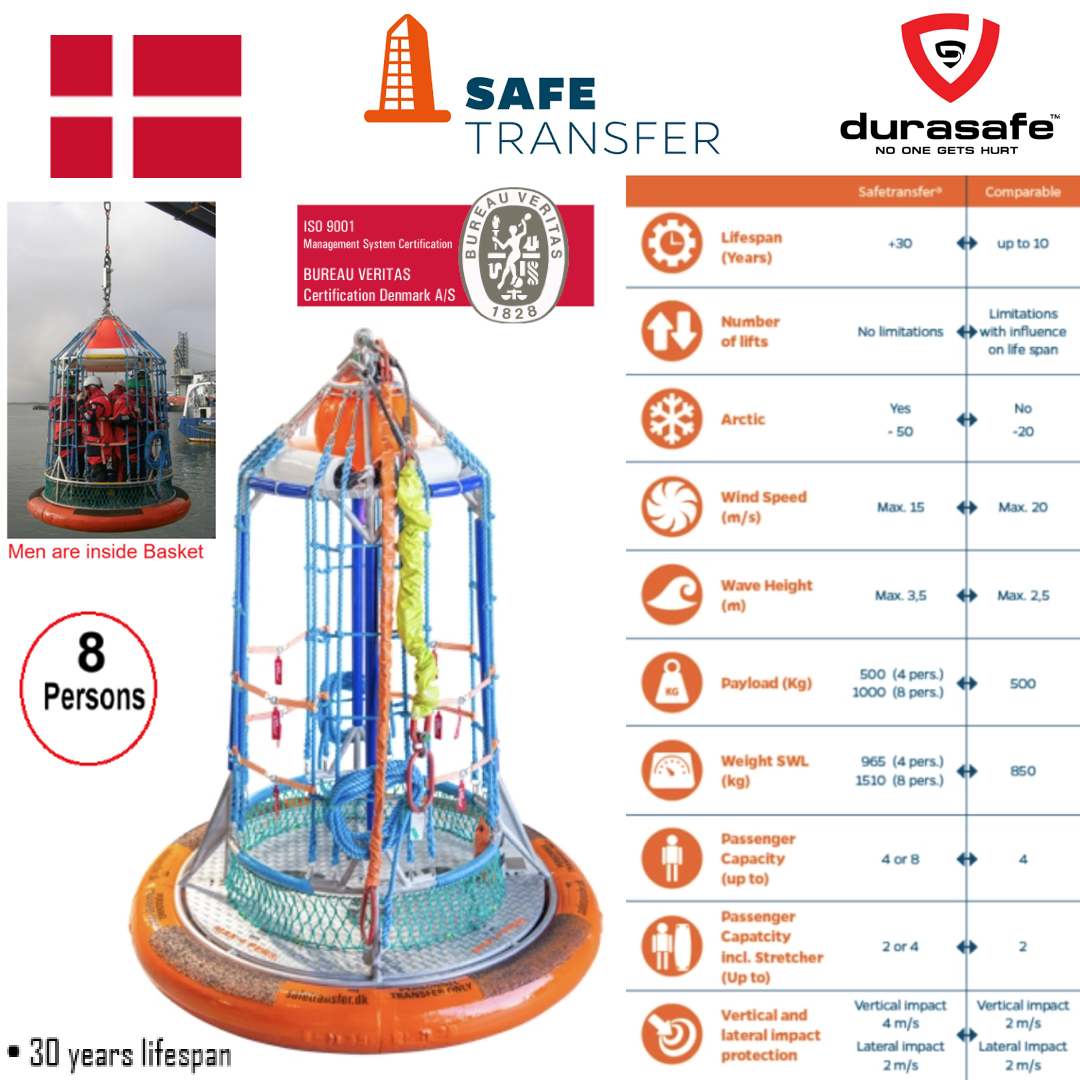

Ensures safe, quick and cost-effective personnel transfer, between offshore installations, drilling rigs and vessels. The basket is constructed to considerably enhance safety and confidence levels for personnel during transfers. SAFE TRANSFER® is certified by DNV GL.

Safe Transfer Basket is much safer than Billy Pugh as the crews are inside the Safe Transfer basket during the transfer whereas crews are outside the Billy Pugh basket – https://www.youtube.com/watch?v=XLNUUC_mHok&t=71s

• Height 3340mm

• Diameter 2600 mm

• Tare 510 kg

• Capacity 1000 kg or 8-person

• RIGID STRUCTURE – 1The inside vertical structure of the SAFE TRANSFER® baskets are covered with synthetic foam and tarpaulin for protection of passengers

• WELDING – All weldings are performed by certified welders and in accordance with procedures approved by DNV GL. All primary structure weldings are fully penetrant tested

• NON-SKID SURFACE – All entrances/exits and floor are fitted with non-skid pattern to ensure safe entrance and exit

• TOP-NET AND FLOAT – Top-net for protection of drop objects. Floating fender top and bottom

• LIFTING SLING SET – SAFE TRANSFER® are delivered with lifting sling and compensator, covered with a highly visible material. The compensator serves as a tag line, helping to control the basket by the crane operator. Lifting set length: 3 m or 5 m

• ROPE WEBBING – Four rope webbings, made of spliced rope, are attached to the upper and lower structure. The rope webbings provide extra safety for personnel inside the basket

• CLOSING STRAPS – Rope webbings are fitted with fast click buckle straps ensuring fast and easy exit. Options available

• SHOCK/IMPACT PROTECTION – Orange PUR fender to protect passenger for harmful deceleration by landing, and if the basket is subjected to a lateral impact due to swinging against an obstruction

• DNV GL – Type Approval Certificate

The standard for Certification 2.22 Lifting Appliances

• ABS – PDA Product Design Assessment

• Danish Technological Institute (Notified Body)

• European Standard EN 14502-1:2010

Cranes-Equipment for the lifting of persons Part 1. suspended baskets

• NDT (Non-Destructive Testing) and load test

• Certified lifting sling

• Made in Denmark

• 30 years lifespan
